잔여물 걱정 없이 언제나 깔끔하게.
18 years of dedication for the perfect toothpaste dispenser.
우리는 오랜시간동안 기술개발을 포기하지 않았고
We have never given up on technological development over a long period of time.
저희물건을 사용해본사람들의 의견을 듣고 지속적으로 제품의 문제점을 찾아서 개선하였습니다.
We listened to the opinions of people who used our products and continuously improved by identifying issues.
항상 소비자의 입장에서 생각하였습니다.
We have always thought from the consumer's perspective.
지금의 우리제품은 세계 최고의 품질임을 자신합니다.
We are confident that our current product is of the world's highest quality.
그러나 우리는 더 연구하고 개발해서 앞으로 더 좋은 제품을 만들어 낼것입니다.
However, we will continue to research and develop even better products in the future.
전세계 모든 가정에서 저희 제품을 사용하도록 하는것이 저희 꿈입니다.
Our dream is to have our products used in every household around the world.
저렴한 비용의 제품이면서 최고의 품질이 되도록 노력하겠습니다.
We will strive to make our products affordable while maintaining the highest quality.
JUDY 회사에서 개발한 제품 치약디스펜서 판매시작
Started selling the toothpaste dispenser developed by JUDY company.
JUDY 치약디스펜서 영국전시회 참가. 전시회 참관이후 중국에서 저가형 복사제품이 팔림. 제품의 단점과 중국제품때문에 해외 영업이 어려워짐.
Participated in UK exhibition. After the exhibition, low-priced copy products from China were sold, making overseas sales difficult due to product disadvantages.

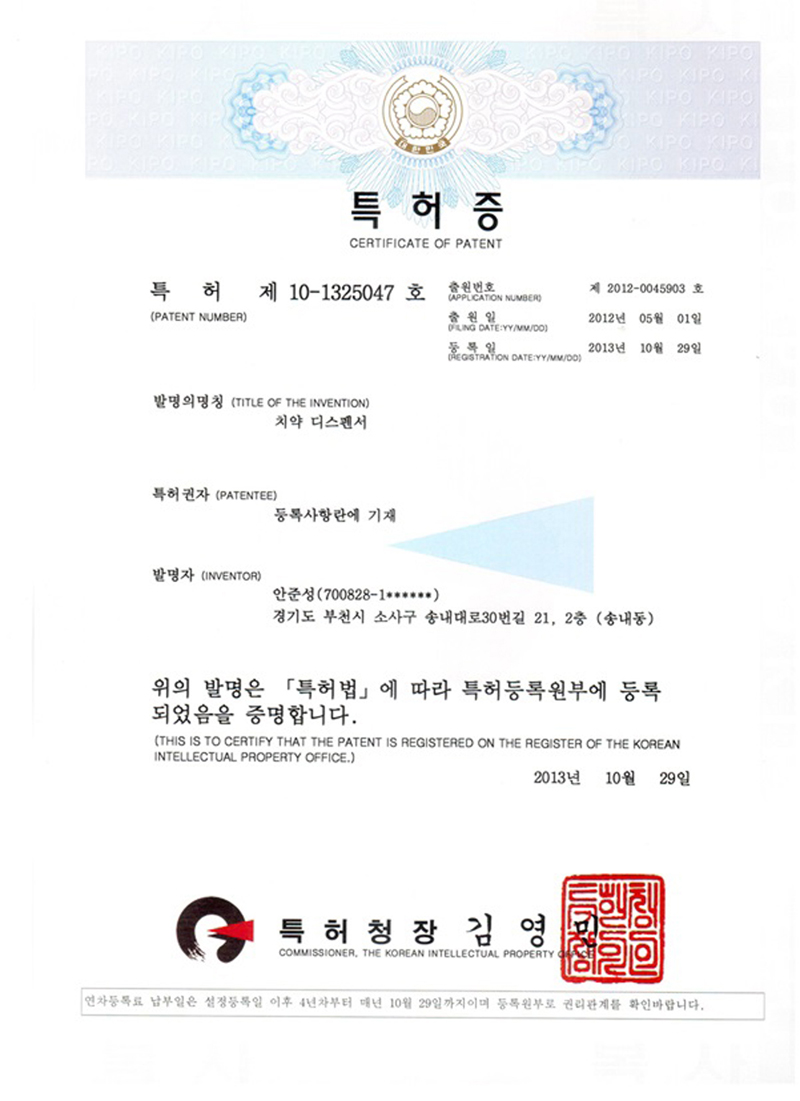

1차 자체 치약디스펜서 개발(특허출원)-현재 소멸된 특허임.
Developed our own toothpaste dispenser and filed for patent.(1st patent -currently expired)
해외바이어초청 상담(부천시 주관)
Participated in overseas buyer invitation consultation hosted by Bucheon City.

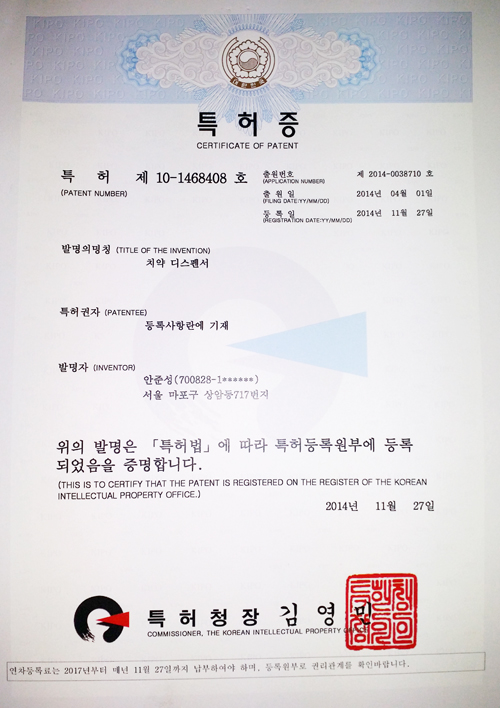

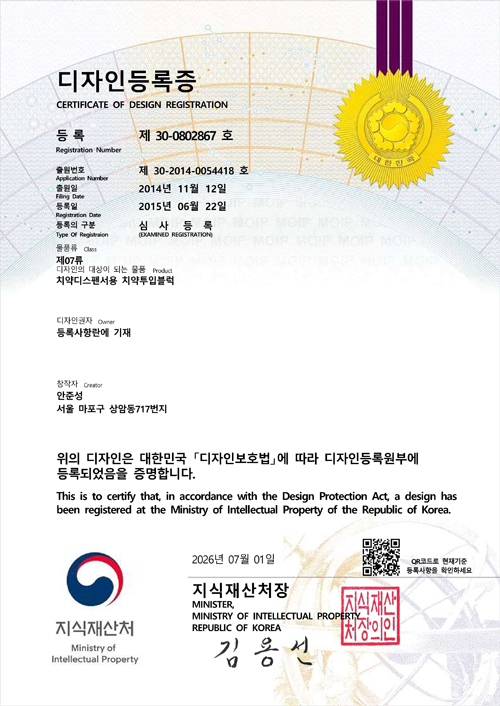

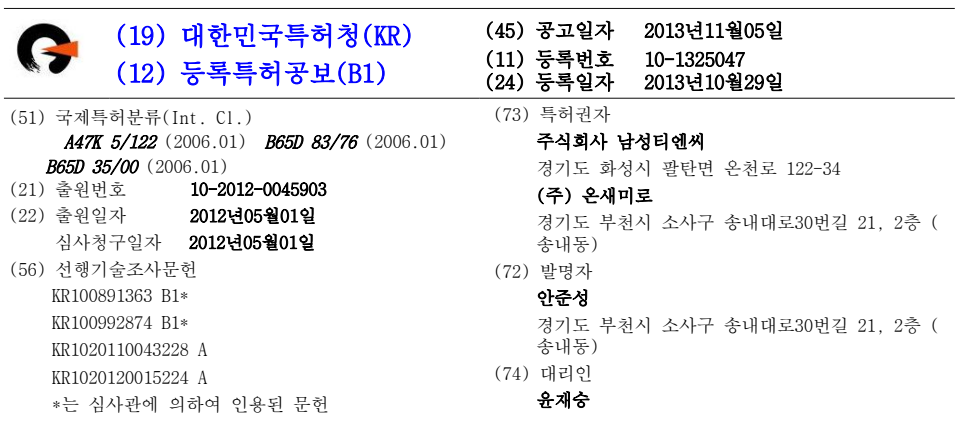

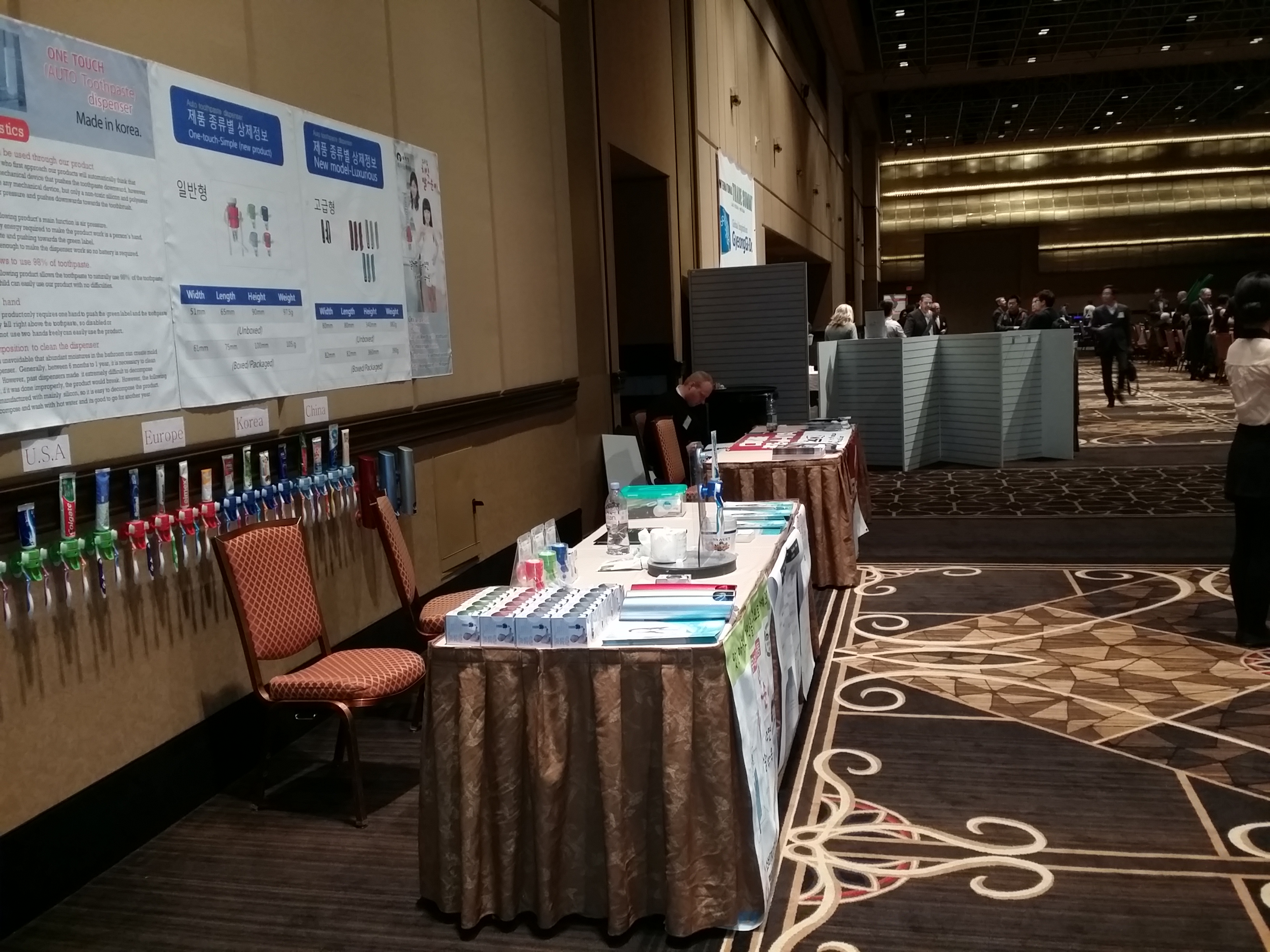

치약디스펜서 추가개발(특허출원,디자인출원,pct출원). 기존 개발된 제품과 유사제품들의 문제점을 찾아내서 보완하여 처음부터 다시 개발하여 특허출원함. 미국라스베가스전시회 출품.
Additional development with patent, design, and PCT applications. Redesigned from scratch after analyzing problems with existing and similar products. Exhibited at Las Vegas, USA.

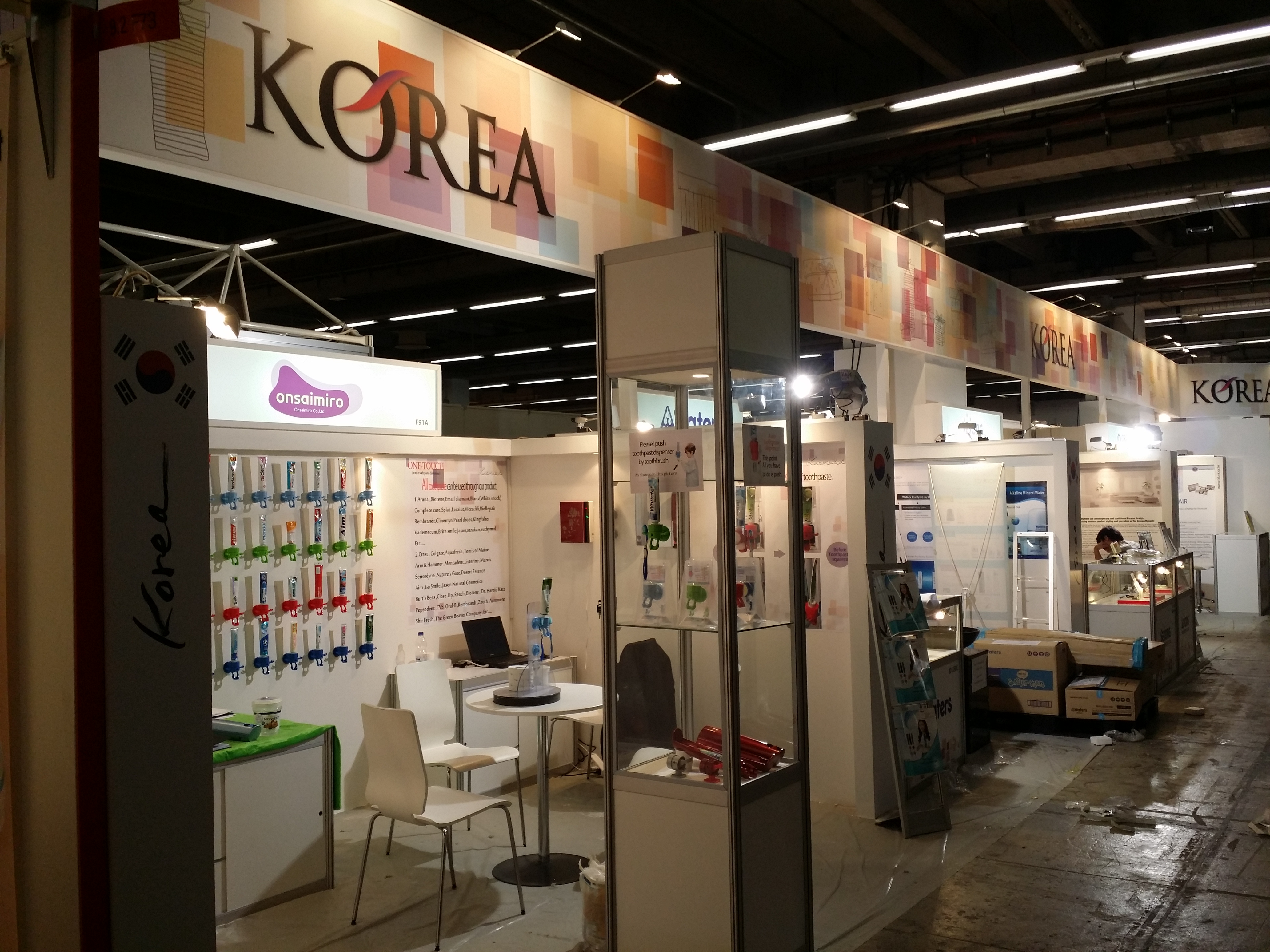

상반기 독일(messe frankfurt)전시회 출품. 해외 전시회에서 폭팔적인 관심과 반응이 있었으나 일반바이어들이 홍보방법에 어려움을 토로함. 대형 홈쇼핑몰 업체에서는 낮은 판매가격으로 어려움 발생.
Exhibited at Messe Frankfurt, Germany in the first half of the year. Received explosive interest, but buyers struggled with promotion methods. Large shopping malls faced difficulties due to low prices.
중반기 본제품의 단점 발견.(유사제품도 같은 문제가 더 심각하게 발생함.) 단점-치약잔여물이 치약나오는 출구를 막는 문제발생. 문제점을 보완하여 국내판매 시작
In mid-2015, a critical defect was discovered in our product (similar products suffered from the same issue even more severely). The toothpaste residue was clogging the outlet, preventing proper dispensing. We began domestic sales after partially resolving the issue.

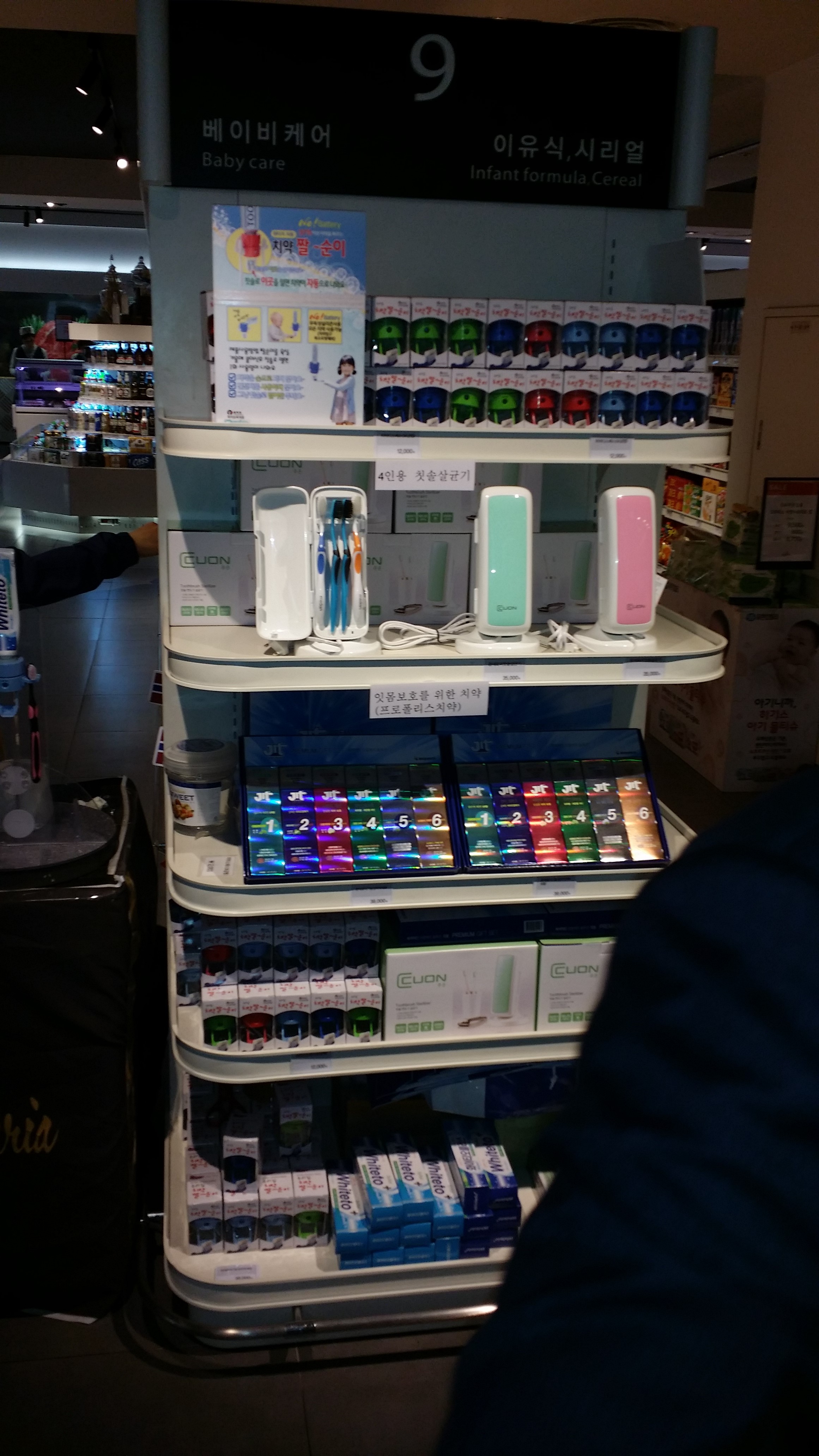

하반기 국내 현대백화점입점 판매및 중소기업전시판매장에서 판매. (현대백화점, 갤러리아백화점, 아울렛매장,부천시 행사장에서 시연판매함.)
In the second half of the year, started selling at Hyundai Department Store, Galleria Department Store, outlets, and Bucheon events with live demonstrations.
2018년~2024년 일정기간동안 계속 연구 개발만 하면서 판매중단.
From 2018 to 2024, focused only on research and development while suspending sales for a certain period.
치약디스펜서의 자동청소장치 개발하였으나 상용화 안함.(부속품수가 많아지고 가격이 올라감)
Developed an automatic cleaning device but did not commercialize it due to increased number of parts and higher cost.
치명적인 단점을 완벽히 해결된 치약디스펜서 추가개발완료. 잔여물에 상관없이 치약이 치솔위로 잘 안착되도록 개발함. 현재 추가 개발된 부분에 대한 특허 출원중.
Successfully completed the development of an improved toothpaste dispenser that fully eliminated the critical defect. The new design ensures that toothpaste is dispensed cleanly and lands precisely on the toothbrush, even when residue is present. A patent application for this new technology is currently underway.

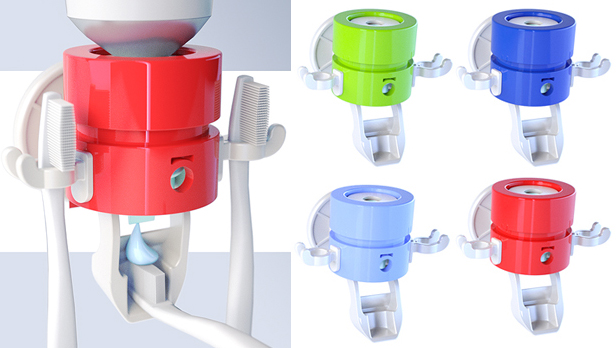

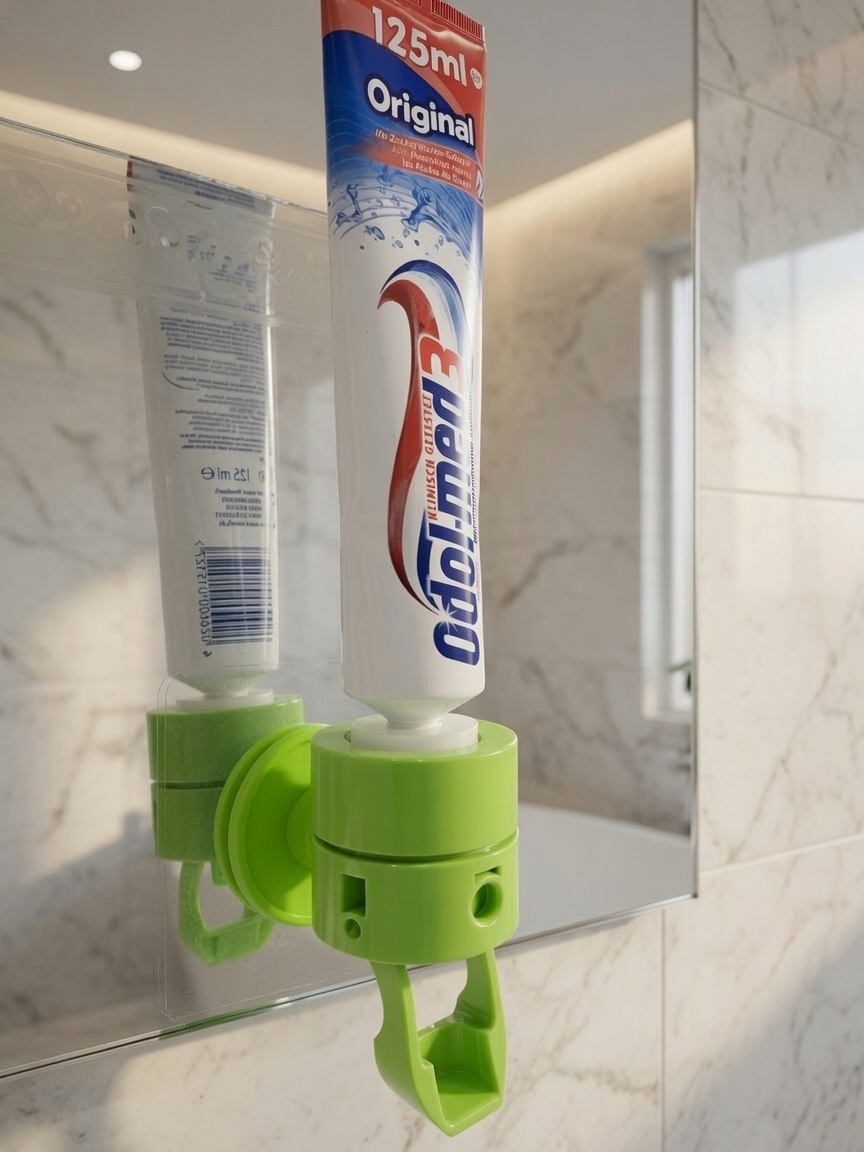

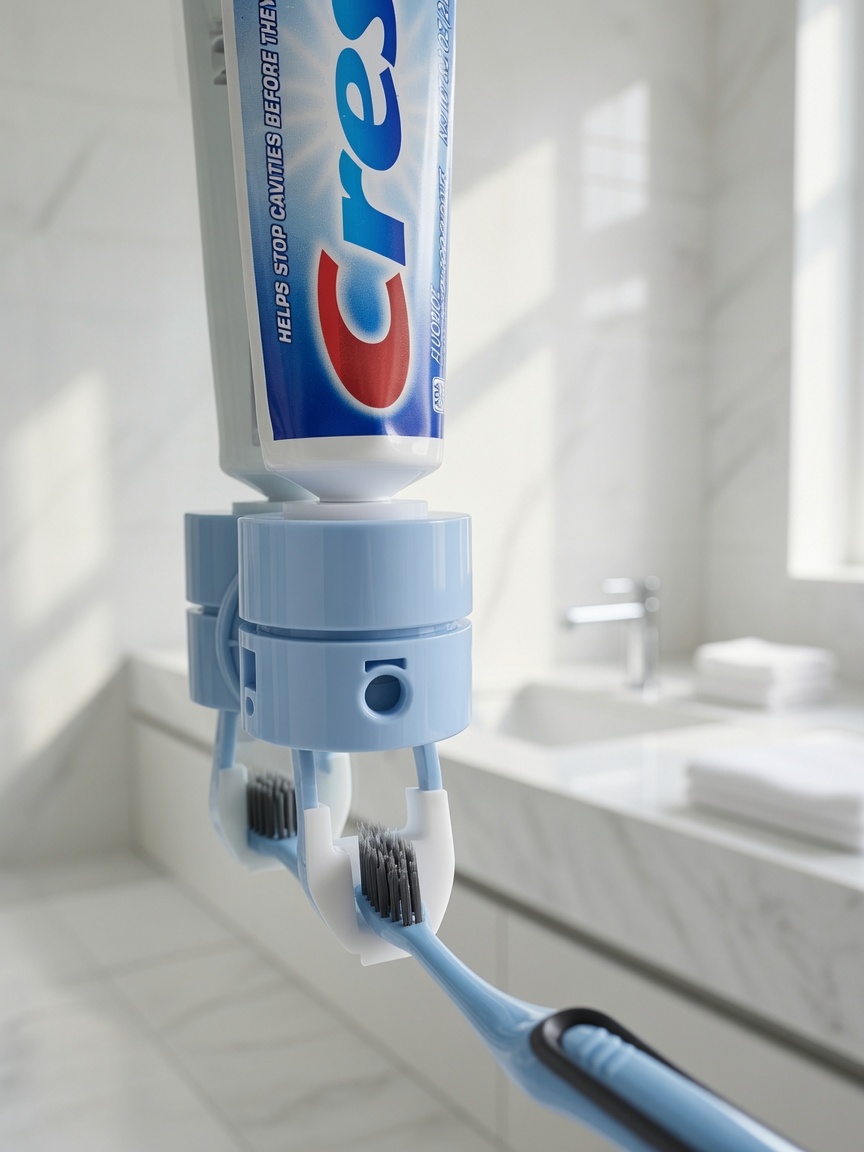

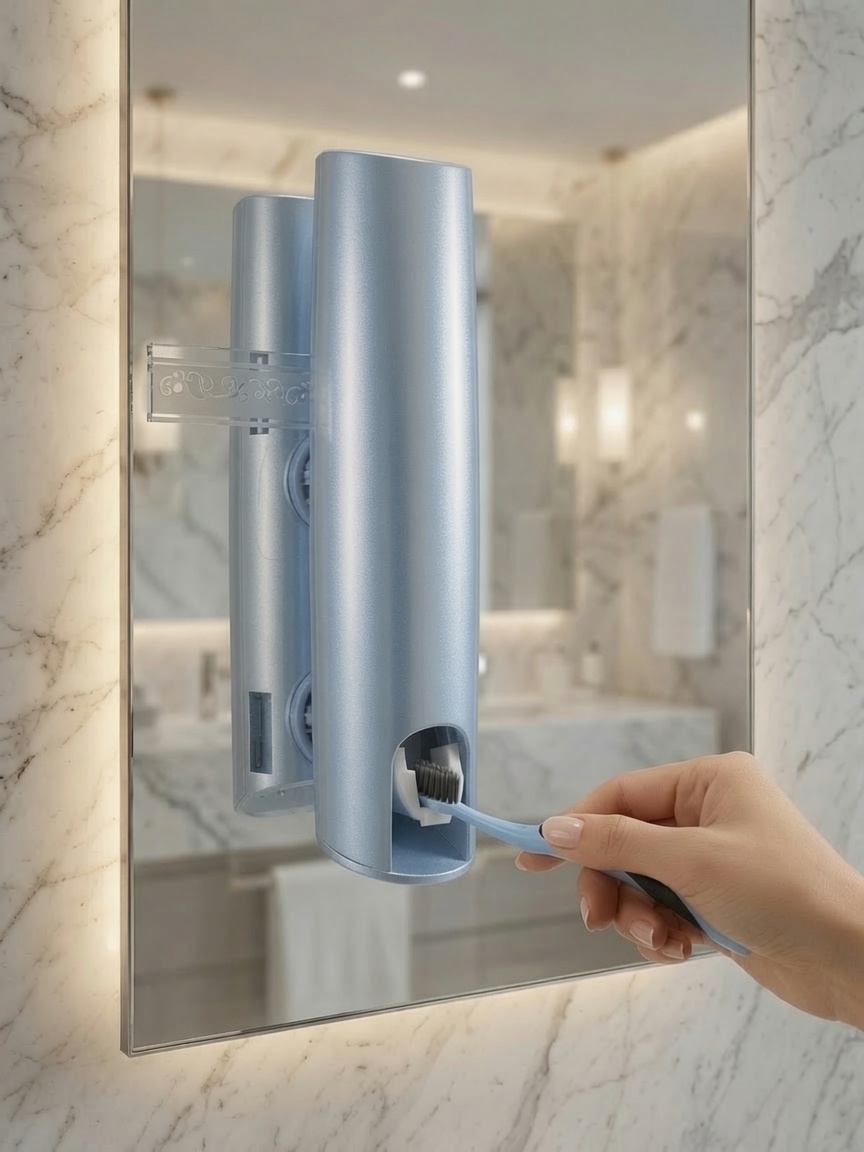

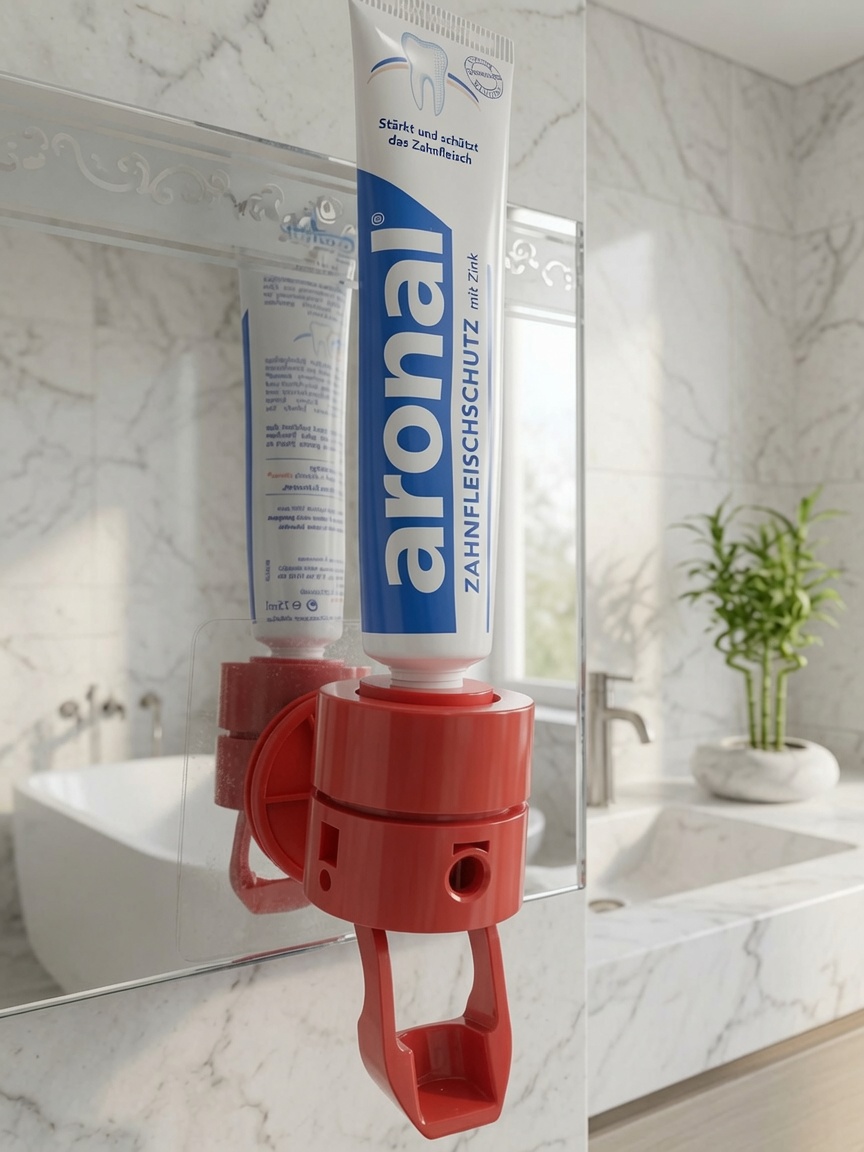

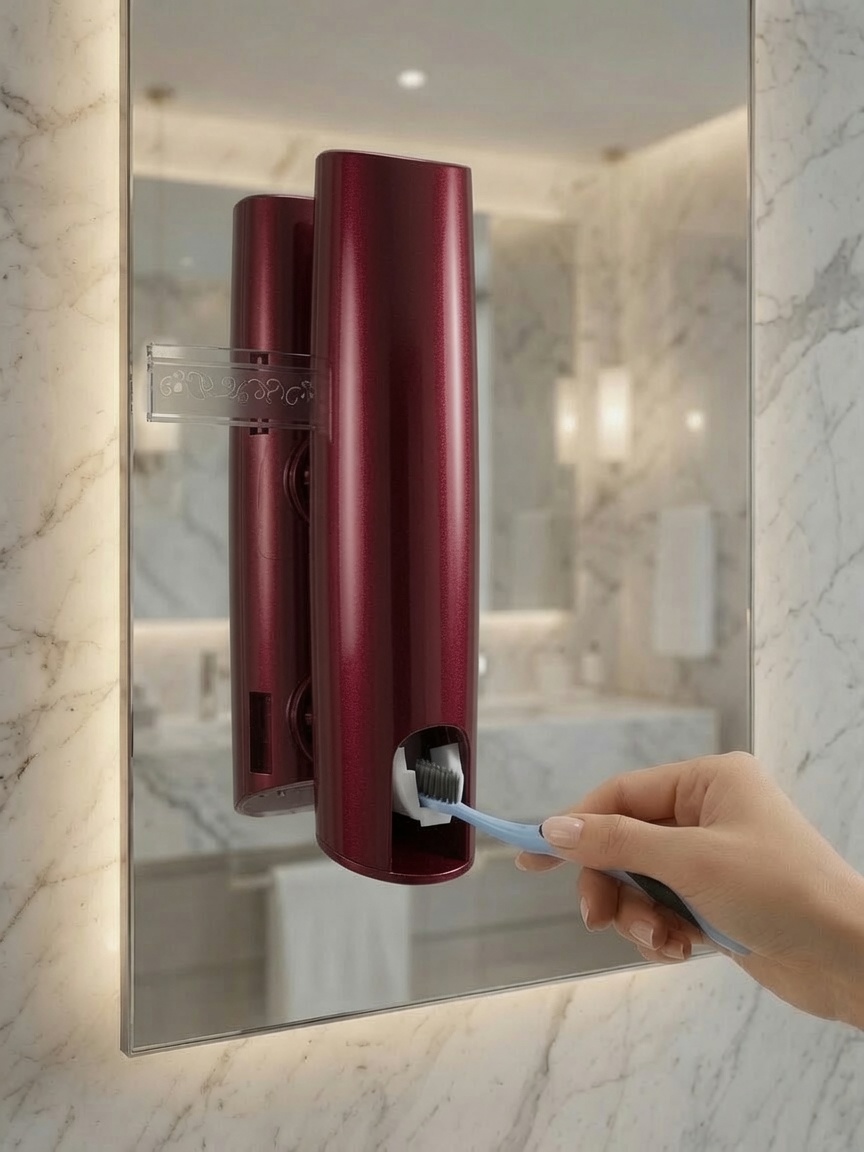

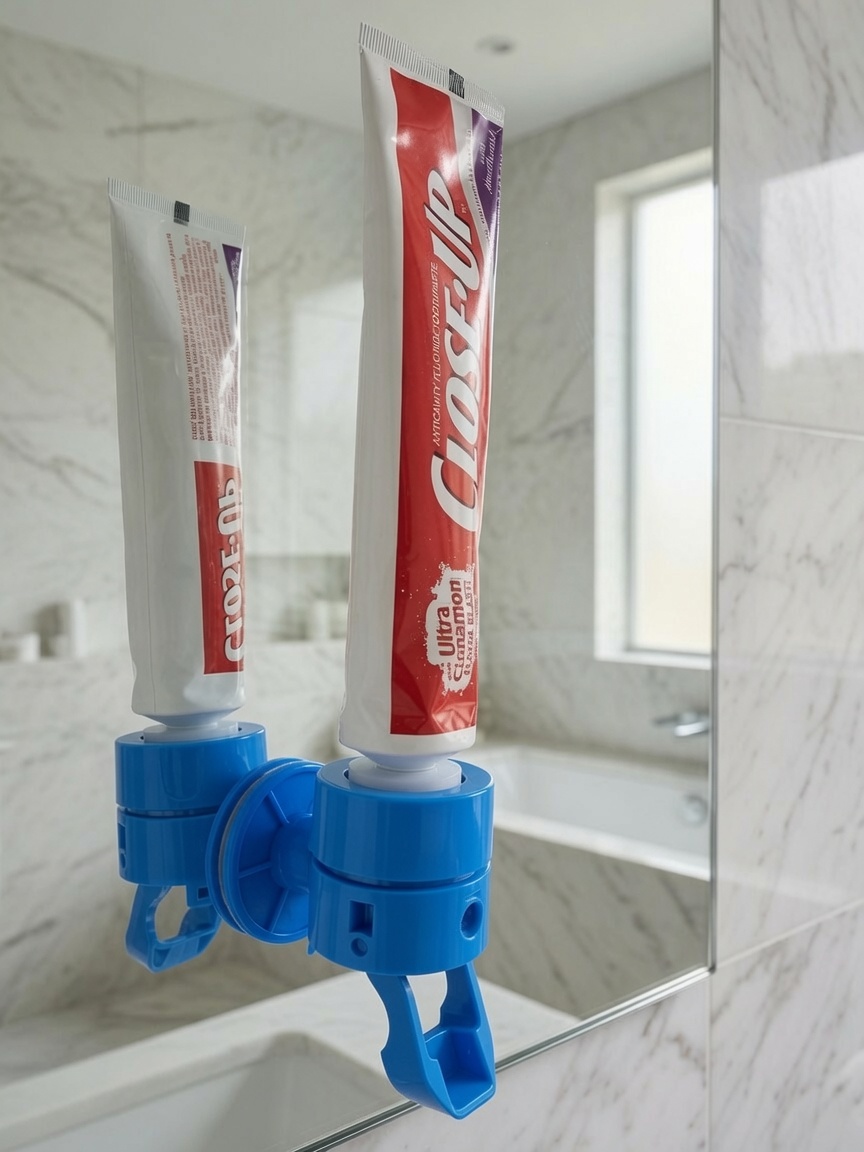

업그레이드된 제품의 최신 사진과 업그레이드된 내용
Latest photos of the upgraded product and details of the upgrade
1.치약이 나오는 토출구의 모양과 크기를 달리하였으며, 토출구가 상하로 미세하게 움직이면서 치약잔여물을 닦아주도록하였다.
The shape and size of the dispensing nozzle were modified, and it was engineered to move subtly up and down, effectively wiping off any remaining toothpaste residue from the outlet.
2.치약안으로 공기나 치약이 역류해서 들어가지 못하도록 내부실리콘을 업그레드하였다.
Upgraded the internal silicone component to prevent backflow of air or toothpaste into the dispenser.
3.하부실리콘에 미세한 공기가 들어가도록 하여 치약을 누르는 장치가 항상 제위치로 복원되도록 하였다.
The lower silicone was designed to permit a small amount of air intake, ensuring that the toothpaste dispensing mechanism consistently returns to its original position after each use.
4.클린커버를 만들어서 손쉽게 디스펜서를 청소할수 있도록 만들었다.
We introduced a Clean Cover designed to make cleaning the dispenser quick and easy.
5.치약디스펜서 기능이외 다양한 디스펜서로 활용할수 있도록 만들었다.
It was designed to be used as a versatile dispenser in addition to its toothpaste dispenser function.
• 주방세제 디스펜서 / Alternative Use as Kitchen Detergent Dispenser
• 린스디스펜서 / Conditioner Dispenser
• 손세정제디스펜서 / Hand Soap Dispenser
• 거품디스펜서 / Foam Dispenser
• 폼플렌징디스펜서 / Foam Cleanser Dispenser
• 노즐이 위아래로 미세하게 움직여 치약 잔여물을 밀어냅니다. 치약이 나올 때만 미세하게 돌출되었다가 치약이 다 나오고 나면 안으로 들어가서 치솔을 움직이면서 실수로 치약이 노즐에 뭍지 않도록 합니다.
• The nozzle moves subtly up and down to wipe away residue. It only protrudes while dispensing and retracts fully once the toothpaste has finished coming out, so that toothpaste does not accidentally stick to the nozzle when you move the toothbrush.
• 잔여물이 노즐 입구에 묻지 않고 대부분 뒤쪽으로 붙어 토출을 방해하지 않으며, 가끔 묻더라도 다음 사용 시 나오는 치약 압력으로 함께 떨어져 나갑니다.
• Residue does not stick to the nozzle opening (mostly to the rear) and does not block dispensing. Even if it does, the next squeeze pushes it off with the toothpaste.
• 노즐 입구 모양이 독특하여 치약이 과도하게 나오지 않고 적정량만 토출됩니다.
• The uniquely shaped nozzle opening ensures only the optimal amount of toothpaste is dispensed.
• 상층 실리콘의 역류방지 장치로 내부 압력을 유지해 치약의 85%~95%까지 짜낼 수 있습니다.
• The anti-backflow design of the upper silicone maintains internal pressure, allowing 85–95% of the toothpaste to be used.
• 상층 실리콘과 치약의 결합부에 여유 공간이 있어 전 세계 거의 모든 치약과 호환되며, 탈부착이 매우 쉽습니다.
• Extra clearance at the connection between the upper silicone and the toothpaste tube makes it compatible with almost all toothpaste brands worldwide and extremely easy to attach/detach.
• 하부 실리콘과 중층 실리콘 사이의 미세한 틈으로 공기가 들어가 내부압력이 강한 상태에서도 라바가 항상 제자리로 복원되도록 합니다.
• A tiny air gap between the lower and middle silicone allows air to enter so that the rubber always returns to its original position even when internal pressure is high.
• 사용자가 가장 더러워지는 부분인 치솔 접촉 라바 위에 클린커버를 장착했습니다.
• A Clean Cover is placed over the rubber that comes into contact with the toothbrush — the part that gets dirtiest.
• 클린커버만 손쉽게 탈부착하여 청소·소독할 수 있어 제품 전체를 분해할 필요가 없습니다.
• Only the Clean Cover needs to be removed for cleaning and disinfection — no full disassembly required.
• 특히 호텔·모텔 등 숙박업소에서 고객이 바뀔 때마다 위생을 유지하기에 매우 유용합니다.
• Especially useful in hotels and motels where hygiene must be maintained for every new guest.
• 아크릴 양면테이프는 물을 흡수하지 않아 습한 화장실에서도 접착력이 오랫동안 유지됩니다.
• Acrylic double-sided tape does not absorb water, maintaining strong adhesion even in very humid bathrooms.
• 그러나 접착력이 너무 강해 이사 시 떼어내기 어려운 문제를 해결하기 위해, 먼저 필름을 벽면에 붙이고 그 위에 아크릴 테이프가 부착된 제품을 설치합니다.
• To solve the problem of difficult removal when moving, a protective film is first applied to the wall, and the product (with acrylic tape) is mounted on top of the film.
• 필름 안에 공기가 들어가지 않도록 정확히 부착하면 몇 년을 사용해도 떨어지지 않으며, 탈착 시 필름 모서리만 살짝 긁어 잡아당기면 아주 쉽게 떼어집니다.
• When applied without air bubbles, it stays firmly for years. For removal, simply lift a corner of the film and pull — it comes off cleanly and easily.
• 이사 후 새 필름과 아크릴 테이프만 교체하면 누구나 쉽게 재설치 가능합니다. (중국산 제품처럼 사출 부속이 필름에 붙어 공기가 남는 방식과 다릅니다.)
• After moving, simply replace the film and acrylic tape for easy reinstallation. (Unlike Chinese products that leave micro air gaps due to molded parts attached to the film.)
• 부속품 1개를 바꾸고 1개를 추가하면 주방세제, 샴푸, 린스, 바디워시 디스펜서로 바로 사용할 수 있습니다.
• By changing just one part and adding one more, it becomes a kitchen detergent, shampoo, conditioner, or body wash dispenser.
• 기존 펌프형 제품은 두 손을 사용해야 하고 바닥에 세워 놓아야 하지만, 본 제품은 벽에 부착하여 한 손만으로 편리하게 사용할 수 있습니다.
• Conventional pump bottles require two hands and a flat surface. Ours mounts on the wall and can be used with one hand only.
• 폼클렌징 디스펜서로 사용할 경우에도 부속품 2개만 교체하면 됩니다.
• For foam cleanser use, simply replace two accessories.
브렌드별,제조사별로 치약의 농도가 다르다. 이로 인하여 치약을 짤때 치약이 치솔중앙에 떨어지지 않는 일이 발생하였다. 이를 해결하기 위하여 링의 두께를 달리하여 치약이 떨어지는 위치를 조정할수 있게 만들어서 치약이 치솔중앙에 떨어지도록 만들었다.
Since toothpaste viscosity differs depending on the brand and manufacturer, the toothpaste frequently missed the center of the toothbrush when dispensed. To resolve this issue, we created rings with varying thicknesses, allowing the dropping position to be adjusted so that the toothpaste lands precisely in the center of the toothbrush.
치약디스펜서를 청소할때 제품전체를 분리해야하는 번거로움 발생. 특히 숙박업소의 경우 사용고객의 치솔이 닫는 부분은 고객이 바뀔때마다 청결함을 유지해야 함. 이를 해결하기 위하여 클린커버를 만들어서 쉽게 분리, 결합할수 있게 하고 클린커버만 청소및 소독을 하여 새로 장착하여 사용하도록 하였다.
Cleaning the toothpaste dispenser previously required disassembling the entire unit, which was inconvenient. This was particularly important in hotels and guesthouses, where the part in contact with the toothbrush must be kept hygienic for every new guest. To address this, we created a Clean Cover that can be easily removed and reattached, enabling users to clean and disinfect only the Clean Cover before reinstalling it for use..
아크릴 양면테이프는 접착력이 강하고 수증기(물)을 흡수하지 않기 때문에 화장실에 부착하면 떨어지지 않아서 집을 이사할때 때어내기가 어렵다. 누구나 쉽게 뗄수 있도록 하기 위하여 필름을 먼저 붙이고 그 필름위에 양면테이프가 있는 디스펜서를 부착하여 이사할때 누구나 쉽게 뗄수 있도록 했으며 필름과 양면테이프만 새것으로 바꾸어서 설치하면 누구든지 쉽게 재설치가 가능하도록 하였다.
While acrylic double-sided tape offers strong adhesion and is resistant to moisture, it can be difficult to remove cleanly when moving. To address this, we first apply a protective film to the wall and then mount the dispenser using acrylic tape on top of the film. This allows anyone to easily detach the dispenser when moving. Moreover, by replacing only the film and acrylic tape with new ones, the dispenser can be quickly and easily reinstalled.
다른 양면테이프(pp, pe, pvc발포)로 만든 양면테이프의 경우 물을 흡수하기 때문에 화장실에서 장시간 사용시 접착력이 약해져서 떨어지는 문제가 발생한다. 이를 해결하기 위하여 아크릴 양면테이프를 사용하였다. 아크릴은 물을 흡수하지 않기때문에 장시간 화장실에서 사용하여도 접착력이 약해지지않으며, 매끄럽지 않은 벽면의경우 필름을 부착할수 없기 때문에 필림을 붙이지지 않고 벽면에 아크릴 양면테이프를 바로 부착을 하면 설치가 가능하다.
Unlike PP, PE, or PVC foam tapes that absorb moisture and lose adhesion over time in humid bathrooms, we use acrylic double-sided tape. Acrylic does not absorb water, so it maintains strong bonding even after prolonged use in bathrooms. Additionally, on uneven walls where film cannot be applied, the acrylic tape can be directly attached to the surface without film, making installation possible on a wider range of wall types.
제품 활용팁을 소비자간에 공유할수 있도록하여 더 다양하게 널리 사용될수 있도록 할예정입니다.
We plan to facilitate the sharing of product usage tips among consumers, so that our product can be utilized in more diverse and creative ways.
미국·유럽에서 판매 중인 치약디스펜서 사용 고객들의 주요 불만사항과
Major complaints from users of toothpaste dispensers sold in the US and Europe
본 제품이 어떻게 100% 해결하는지 비교한 자료입니다.
Customer Complaint Analysis (US/EU) vs Onsaemiro Solutions
| No | 문제점 / Problem | 발생빈도 Frequency |
본제품 해결 방법 / Our Solution (100%) |
|---|---|---|---|
| 1 |
치약 찌꺼기가 노즐에 굳어서 치약이 안 나옴 Toothpaste residue hardens in the nozzle, blocking dispensing |
★★★★★ |
3개의 핵심 실리콘구조와 움직이는 노즐 설계로 노즐이 막혀서 치약이 안나오는 문제를 해결함. The problem of toothpaste not coming out due to a clogged nozzle is solved by a 3-core silicone structure and a moving nozzle design. |
| 2 |
토출량이 일정하지 않음 (대부분 과도하게 나옴) Inconsistent dispensing volume (usually too much) |
★★★★★ |
기존노즐과 다른 모양과 구조적인 차이로 적정량만 정확하게 토출됨. Due to differences in shape and structure compared to conventional nozzles, only the appropriate amount is accurately discharged. |
| 3 |
공기가 들어가 치약이 굳어서 나오지 않음. Air enters and hardens the toothpaste, preventing use |
★★★★★ |
실리콘 내부로 들어가는 공기를 분산시켜서 노즐입구에 있는 치약이 쉽게 굳지 않도록 했음. The air entering the silicone was dispersed to prevent the toothpaste at the nozzle opening from hardening easily. |
| 4 |
청소가 매우 어려움 Extremely difficult to clean |
★★★★★ |
클린커버 부속품으로 청소가 매우 쉽고 간편함. Clean Cover accessory makes cleaning quick and easy. |
| 5 |
분해가 어려움 Difficult to disassemble |
★★★★☆ |
핵심 부속품이 단 3개로 분해·결합이 매우 쉽움. Only 3 core parts — extremely easy to take apart and reassemble. |
| 6 |
마지막 치약을 끝까지 사용 불가 (약 70%만 사용) Cannot use the last portion (only ~70% of toothpaste usable) |
★★★★★ |
상층 실리콘 역류방지 노즐로 치약의 85~95%까지 사용 가능함. Upper silicone anti-backflow nozzle allows 85–95% usage. |
| 7 |
벽면 접착테이프 탈락 Wall adhesive tape peels off |
★★★★☆ |
탈부착 가능한 정전기 필름 + 물을 흡수하지 않는 아크릴 양면테이프로 강력한 접착력을 유지함. Removable electrostatic film + water-resistant acrylic tape for strong, lasting adhesion. |
| 8 |
몇 달 사용 후 고장 (부속품 부러지거나 떨어짐) Breaks after a few months (parts crack or fall off) |
★★★★☆ |
스트레스가 많은 부속품을 ABS 4T 이상으로 제작하여 떨어뜨려도 깨지지 않음. High-stress parts made of ABS 4T+ — durable even if dropped. |
| 9 |
치약 브랜드별 호환성 문제 (특정 치약만 사용 가능) Brand compatibility issues (only works with specific toothpastes) |
★★★☆☆ |
상층 실리콘 유격 공간으로 거의 전 세계 모든 치약과 호환됨. Upper silicone clearance space makes it compatible with almost all toothpaste brands worldwide. |
| 10 |
치약 탈부착이 어려움 Difficult to attach/detach toothpaste tube |
★★★★☆ |
상층 실리콘 유격 공간으로 치약 탈부착이 매우 쉽움. Upper silicone clearance makes tube attachment and removal very easy. |
위 10가지 주요 불만 사항을 본 제품이 100% 해결합니다. Our product completely solves all 10 major customer complaints listed above.
※ 동영상은 추후 업데이트 예정입니다. / Videos will be linked later.
